SPDs are recommended for installations in accordance with 18th edition wiring regulation to protect sensitive and expensive electrical equipment.
Standard:BS EN61643-11
Brand:Laiwo
Email:sales@wosom.cn
Telephone:+86-15067706272
whatsapp:+86-15067706272
This range of SPDs are characterised by an 8/20μs current wave, they can prevent the spread of over voltages in electrical installations and protects equipment connected to it. These surge protector must be replaced if the indicator turns red. They comply with BS EN61643-11.
This range of SPDs are characterised by an 8/20μs current wave, they can prevent the spread of over voltages in electrical installations and protects equipment connected to it. These surge protector must be replaced if the indicator turns red. They comply with BS EN61643-11.

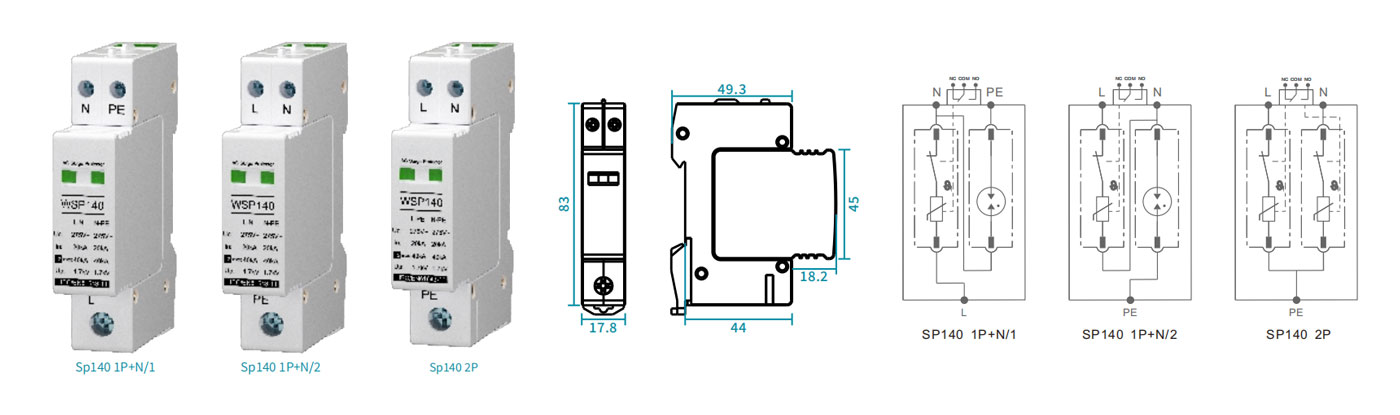

| Part No | Description |
| WSP 120 1P+N/1 | 1P+N 10kA/20kA Type 2 Surge Protective Device |
| WSP 120 1P+N/2 | 1P+N 10kA/20kA Type 2 Surge Protective Device |
| WSP 120 2P | 2P 10kA/20kA Type 2 Surge Protective Device |
| WSP 140 1P+N/1 | 1P+N 20kA/40kA Type 2 Surge Protective Device |
| WSP 140 1P+N/2 | 1P+N 20kA/40kA Type 2 Surge Protective Device |
| WSP 140 2P | 2P 20kA/40kA Type 2 Surge Protective Device |

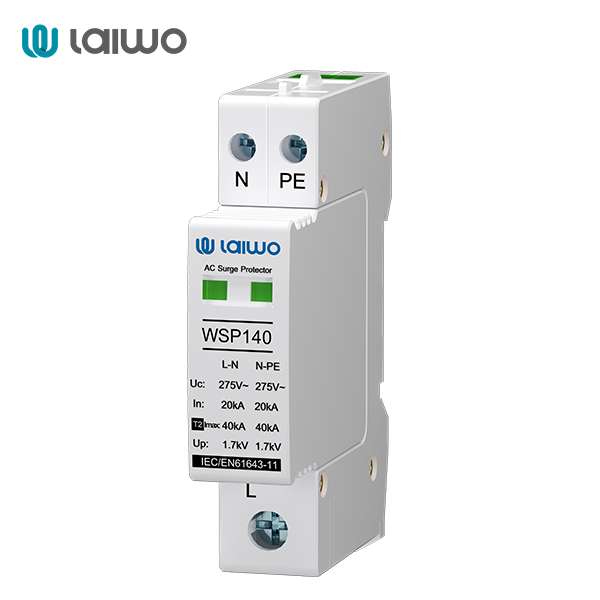

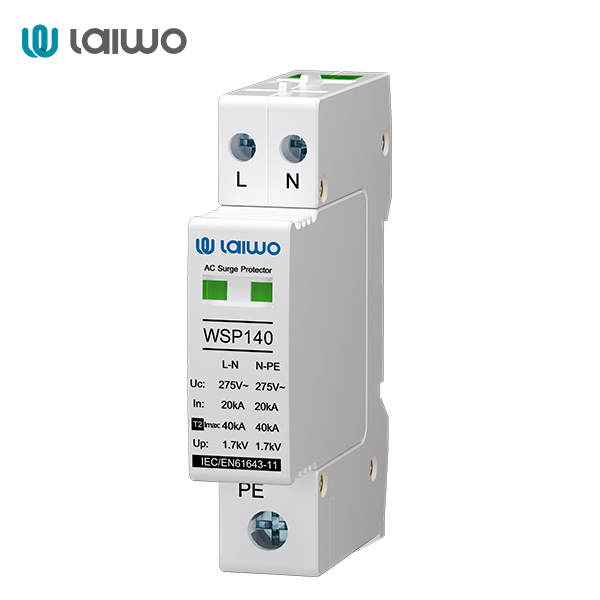

The WSP Surge Protective Device is designed to offer robust protection against voltage surges and transients, ensuring the safety of electrical systems and sensitive equipment in residential, commercial, and industrial settings. This device effectively diverts excess voltage caused by lightning strikes, power surges, and other electrical disturbances, reducing the risk of damage to connected devices.
With a compact and user-friendly design, the WSP Surge Protective Device is easy to install within various electrical configurations, facilitating seamless integration into existing systems. Constructed from durable materials, it is built to withstand demanding conditions while ensuring reliable performance. The device features visual indicators for monitoring operational status, allowing for quick assessments of functionality. Compliant with national electrical safety standards, the WSP Surge Protective Device is an essential component for enhancing the safety and longevity of electrical installations, providing peace of mind against unexpected surges.
Single-phase protection for T/T system
Pluggable module, easy for installation and maintenance
High discharge capacity, quick response
Double thermal disconnection devices, providing more reliable protection
Green window will change when fault and also provide remote alarm control at the same time
