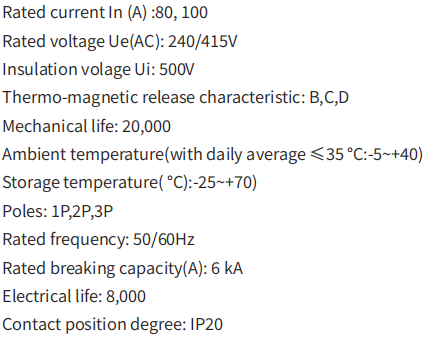

Rated current In (A): 80,100
Rated voltage Ue(AC): 240/415V
Thermo-magnetic release characteristic: B,C,D
Mechanical endurance:20000 cycles
Poles:1P, 2P,3P
Rated frequency: 50/60Hz
Rated breaking capacity(A): 6KA
Electrical endurance: 8000 cycles
Contact position degree: IP20
Brand: Laiwo
Email: sales@woson.cn
Telephone: +86-15067706272
Whatsapp: +86-15067706272
WCH MCB DC provide reliable overload and short-circuit protection. The circuit breakers are highly sensitive and quick to respond, ensuring safe and stable operation of the DC system.
| Part No | Description | Box Qty |
| WCH180C | 1 Pole 80Amps C Curve MCB | 12 |
| WCH1100C | 1 Pole 100Amps C Cure MCB | 12 |
| WCHI280C | 2 Pole 80Amps C Curve MCB | 6 |
| WCH2100C | 2 Pole 100Amps C Curve MCB | 6 |
| WCH380C | 3 Pole 80Amps C Curve MCB | 4 |
| WCH3100C | 3 Pole 100Amps C Curve MCB | 4 |
