Rated current In (A): 80,100
Rated voltage Ue(AC): 240/415V
Thermo-magnetic release characteristic: B,C,D
Mechanical endurance:20000 cycles
Poles:1P, 2P,3P
Rated frequency: 50/60Hz
Rated breaking capacity(A): 6KA
Electrical endurance: 8000 cycles
Contact position degree: IP20
Brand: Laiwo
Email: sales@woson.cn
Telephone: +86-15067706272
Whatsapp: +86-15067706272

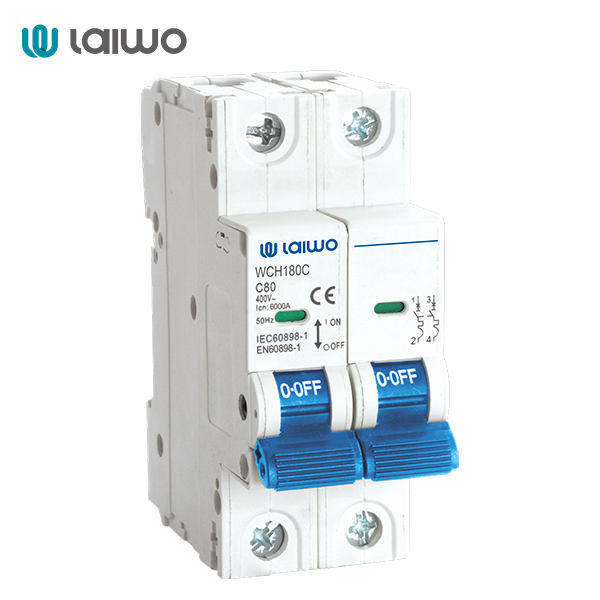

WCH MCB AC Breaker provide precise current protection and overload protection. They are widely used in electric vehicles, solar power generation systems and other fields to ensure safe and stable operation of circuits.
| Part No | Description | Box Qty |
| WCH180C | 1 Pole 80Amps C Curve MCB | 12 |
| WCH1100C | 1 Pole 100Amps C Curve MCB | 12 |
| WCH280C | 2 Pole 80Amps C Curve MCB | 6 |
| WCH2100C | 2 Pole 100Amps C Curve MCB | 6 |
| WCH380C | 3 Pole 80AmpsC Curve MCB | 4 |
| WCH3100C | 3 Pole 100Amps C Curve MCB | 4 |
Rated currentIn (A): 80,100
Rated voltage Ue(AC): 240/415V
Insulation volage Ui: 500V
Thermo-magnetic release characteristic: B,C,D
Mechanical life: 20,000
Ambient temperature (with daily average <35℃:-5~+40)
Storage temperature (℃): -25~+70)
Poles: 1P,2P,3P
Rated frequency: 50/60Hz
Rated breaking capacity(A): 6 kA
Electrical life: 8,000
Contact position degree: lP20
