Rated Current: 25A,40A,63A
Rated tripping current l△n: 30mA/100mA/300mA
Sensitivity: AC,pulsating and smooth DC residual currents
Rated voltage Un: 230/400V AC
Rated frequency: 50Hz
Rated insulation voltage Ui: 440V
Rated impulse withstand voltage Uimp: 4 kV(1,2/50)
Rated short circuit capacity lcn: 10kA
Peak withstand current: 3kA
Endurance electrical: 4000 operating cycles
Endurance mechanical:20000 operating cycles
Operation temperature:-5℃~+40℃
Degree of protection: IP20
Terminal capacity: 1,5-35mm²
Rated: 6mA Smooth DC
Brand: Laiwo
Email: sales@woson.cn
Telephone: +86-15067706272
Whatsapp: +86-15067706272

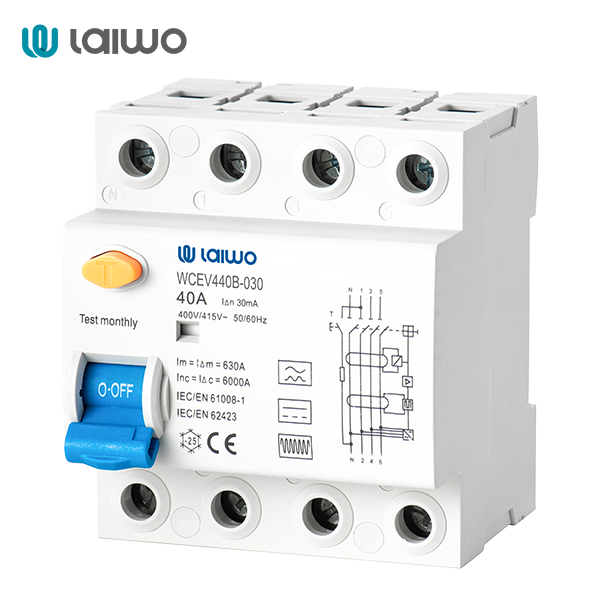

WCEV Type B DC Mini Circuit Breaker provide accurate current protection and overload protection. Their compact size and efficient performance make it easy to achieve precise circuit control in DC power systems. They are widely used in electric vehicles, solar power generation systems and other fields.
The WCEV Type B DC Mini Circuit Breaker is specifically designed for the protection of direct current (DC) electrical systems, providing reliable overcurrent protection against overloads and short circuits. Ideal for applications such as solar power systems, electric vehicles, and battery storage, this circuit breaker ensures safe operation in various DC environments. Its compact design allows for easy installation in standard distribution panels, making it suitable for both residential and commercial setups. The WCEV Type B DC MCB features a user-friendly reset mechanism for quick service restoration after a trip. Built to comply with national electrical safety standards, it offers robust performance and enhances the safety of DC electrical installations. With its durable construction and efficient functionality, the WCEV Type B DC Mini Circuit Breaker is an essential component for ensuring the safety and reliability of DC applications.
