Rated currentIn (A):6,10,16,20,25,32,40,50,63
Poles: 1P,2P,3P,4P
Rated voltage Ue(AC): 230/400V
Rated frequency: 50/60Hz
Insulation volage Ui: 500V
Rated breaking capacity(A): 6KA
Rated impulse withstand voltage(1.2/50) Uimp (V): 4000
Dielectric test voltage at ind. Frq for 1 min (KV) : 2
Ambient temperature(with daily average <35 °C:-5~+40)

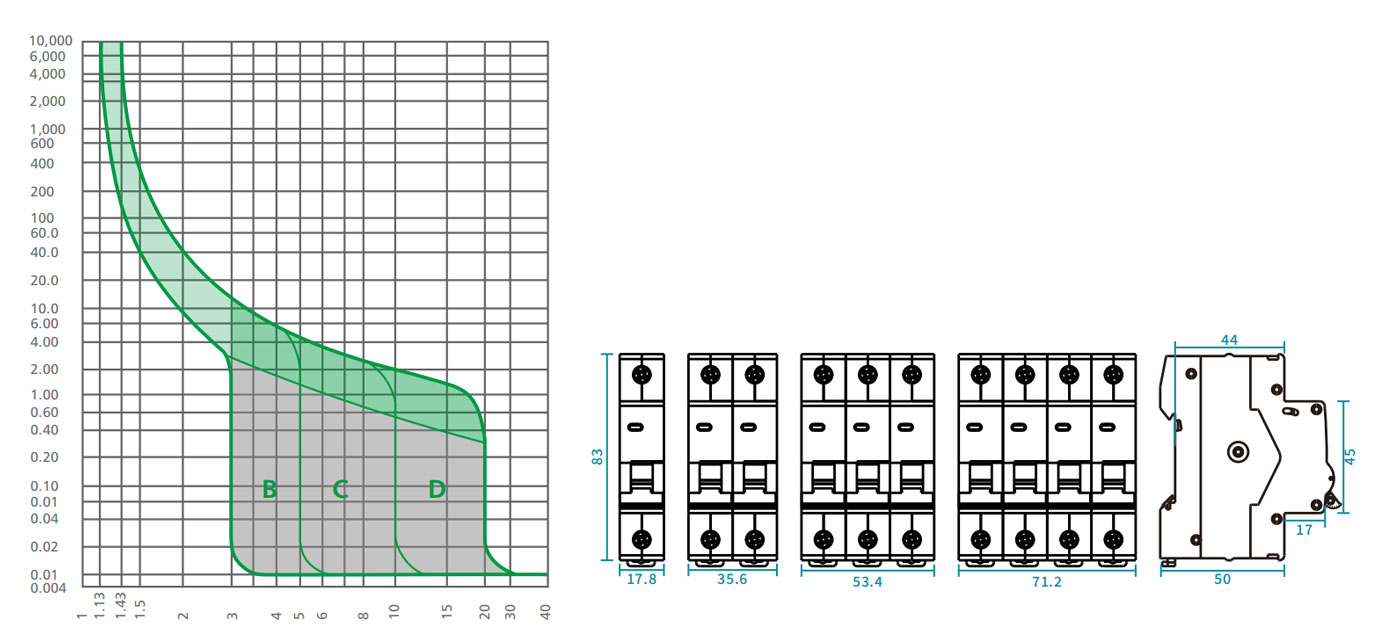

Thermo-magnetic release characteristic: B,C,D
Electrical life: 8,000
Contact position degree: lP20
Storage temperature(°C):-25~+70)
Reference temperature for setting ofthermal element(°C):30
Brand: Laiwo
Email: sales@woson.cn
Telephone: +86-15067706272
Whatsapp: +86-15067706272
WCA MCB Electrical Breaker combine the functions of traditional circuit breakers with modern electronic technology, with higher sensitivity and reliability. They are suitable for various load types, including inductive loads and resistive loads, and effectively prevent overload, short circuit and ground fault.
| Part No | Description | Box Qty |

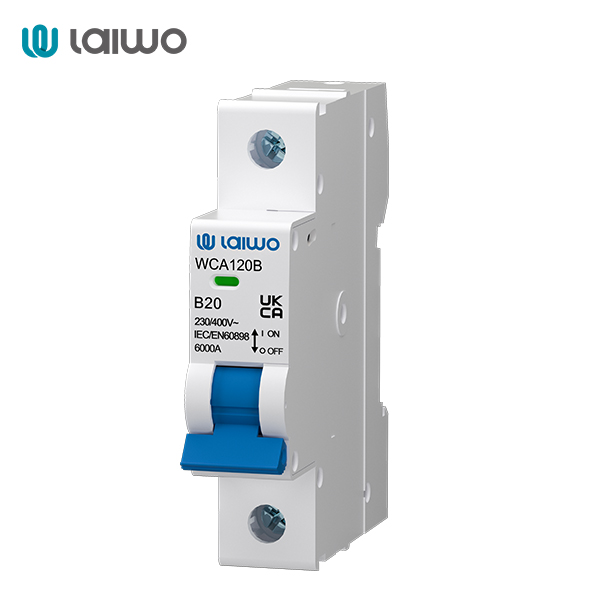

| WCA106B~163B | 1Pole 6Amps~63Amps B Curve 6kA MCB | 12 |

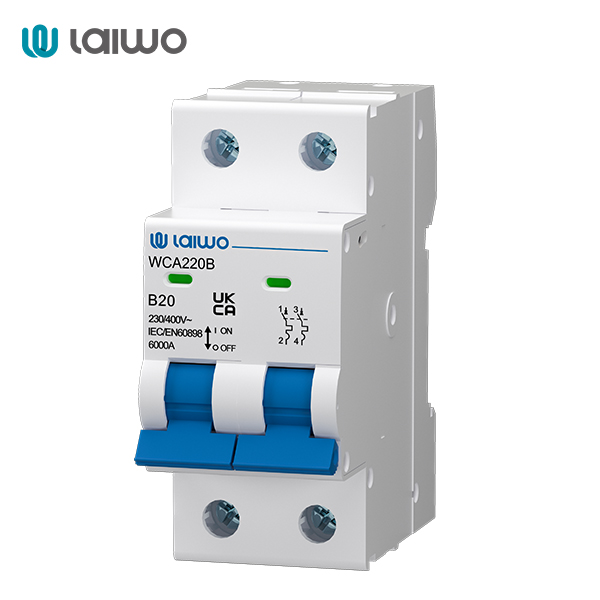

| WCA206B~263B | 2Pole 6Amps~63Amps B Curve 6kA MCB | 6 |

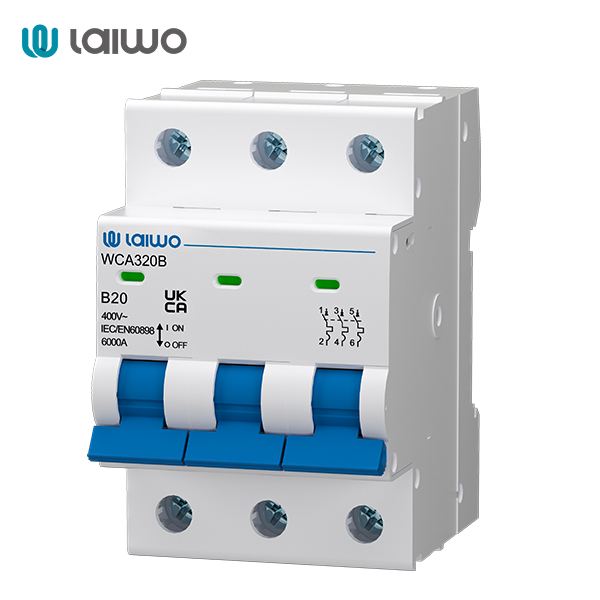

| WCA306B~363B | 3Pole 6Amps~63Amps B Curve 6kA MCB | 4 |

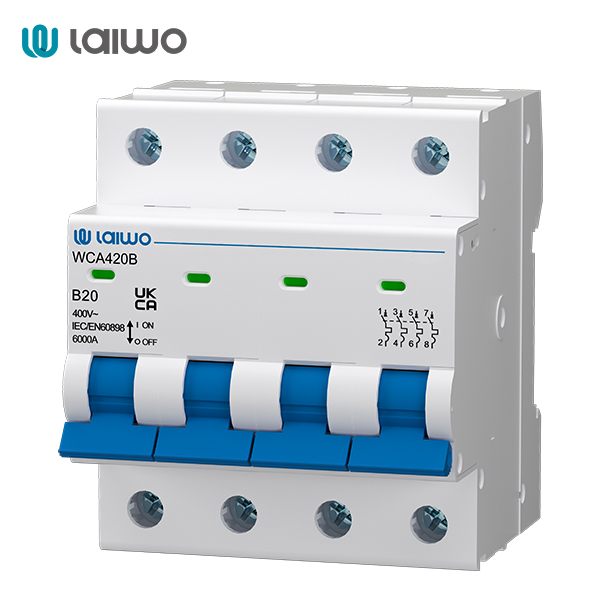

| WCA406B~463B | 4Pole 6Amps~63Amps B Curve 6kA MCB | 3 |
| WCA106C~163C | 1Pole 6Amps~63Amps C Curve 6kA MCB | 12 |
| WCA206C~263C | 2Pole 6Amps~63Amps C Curve 6kA MCB | 6 |
| WCA306C~363C | 3Pole 6Amps~63Amps C Curve 6kA MCB | 4 |
| WCA406C~463C | 4Pole 6Amps~63Amps C Curve 6kA MCB | 3 |
| WCA106C~163D | 1Pole 6Amps~63Amps D Curve 6kA MCB | 12 |
| WCA206C~263D | 2Pole 6Amps~63Amps D Curve 6kA MCB | 6 |
| WCA306C~363D | 3Pole 6Amps~63Amps D Curve 6kA MCB | 4 |
| WCA406C~463D | 4Pole 6Amps~63Amps D Curve 6kA MCB | 3 |
Rated currentIn (A):6,10,16,20,25,32,40,50,63
Poles: 1P,2P,3P,4P
Rated voltage Ue(AC): 230/400V
Rated frequency: 50/60Hz
Insulation volage Ui: 500V
Rated breaking capacity(A): 6KA
Rated impulse withstand voltage(1.2/50) Uimp (V): 4000
Dielectric test voltage at ind. Frq for 1 min (KV) : 2
Ambient temperature(with daily average <35 °C:-5~+40)
Thermo-magnetic release characteristic: B,C,D
Electrical life: 8,000
Contact position degree: lP20
Storage temperature(°C):-25~+70)
Reference temperature for setting ofthermal element(°C):30
