Rated current In (A): 6,10,16,20,25,32,40.
Poles: 1P+N,2P,4P.
Rated voltage Ue: 230/400V.
Rated frequency: 50Hz.
Rated breaking capacity(A): 10KA.
Thermo-magnetic release characteristic: C,D.
Contact position degree: lp40.
Electrical life: Not less than 4,000.
Brand:Laiwo
Email:sales@wosom.cn
Telephone:+86-15067706272
whatsapp:+86-15067706272

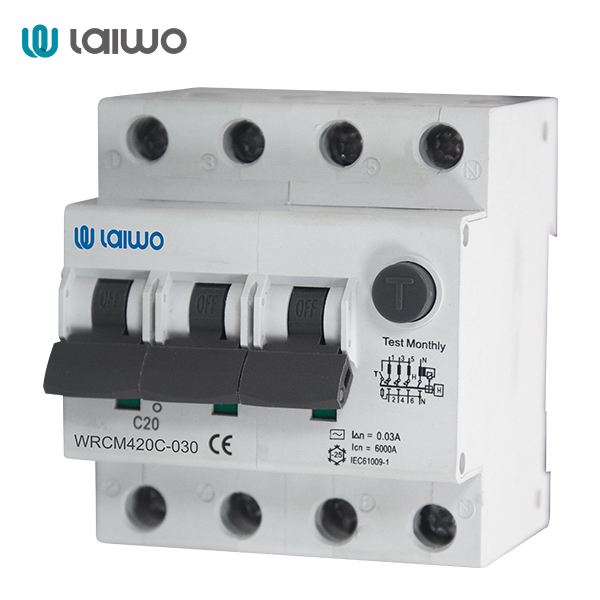

WRCM Earth Leakage Device is an important electrical safety device used to detect and cut off the leakage current caused by insulation damage of equipment. When leakage is detected, it can quickly cut off the power supply, effectively preventing safety hazards such as electric shock accidents and fire.
| Part No | Description |
| WRCM206B-240B/030 | 2Pole (2 Modeles) 6Amps-40Amps B Curve 30mA |
| WRCM206C-240C/030 | 2Pole (2 Modeles) 6Amps-40Amps C Curve 30mA |
| WRCM206D-240D/030 | 2Pole (2 Modeles) 6Amps-40Amps D Curve 30mA |
| WRCM206B-240B/100 | 2Pole (2 Modeles) 6Amps-40Amps B Curve 100mA |
| WRCM206C-240C/100 | 2Pole (2 Modeles) 6Amps-40Amps C Curve 100mA |
| WRCM206D-240D/100 | 2Pole (2 Modeles) 6Amps-40Amps D Curve 100mA |
| Part No | Description |
| WRCM406B-440B/030 | 2Pole (2 Modeles) 6Amps-40Amps B Curve 30mA |
| WRCM406C-440C/030 | 2Pole (2 Modeles) 6Amps-40Amps C Curve 30mA |
| WRCM406D-440D/030 | 2Pole (2 Modeles) 6Amps-40Amps D Curve 30mA |
| WRCM406B-440B/100 | 4Pole (4 Modeles) 6Amps-40Amps B Curve 100mA |
| WRCM406C-440C/100 | 4Pole (4 Modeles) 6Amps-40Amps C Curve 100mA |
| WRCM406D-440D/100 | 4Pole (4 Modeles) 6Amps-40Amps D Curve 100mA |
The WRCM Earth Leakage Device is designed to provide critical protection against earth leakage currents in electrical systems, enhancing safety in residential, commercial, and industrial applications. This device continuously monitors for residual currents, promptly disconnecting the circuit to prevent electric shock and reduce the risk of electrical fires. Its compact design allows for seamless installation in standard distribution panels, ensuring efficient integration into existing setups. The WRCM device features a user-friendly test button for regular functionality checks and a clear indicator light for easy monitoring of operational status. Compliant with national electrical safety standards, it guarantees reliable performance and peace of mind for users. With its durable construction and rapid response capabilities, the WRCM Earth Leakage Device is an essential safeguard for protecting both individuals and property from electrical hazards.
Rated current In (A): 6,10,16,20,25,32,40.
Poles: 1P+N,2P,4P.
Rated voltage Ue: 230/400V.
Rated frequency: 50Hz.
Rated breaking capacity(A): 10KA.
Thermo-magnetic release characteristic: C,D.
Contact position degree: lp40.
Electrical life: Not less than 4,000.
