LAIWO fuse holders are mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL), they are made of a polymer high performance with a fusion temperature more than 300 ºC.
Standard: IEC/ EN 60269
Brand:Laiwo
Email:sales@wosom.cn
Telephone:+86-15067706272
whatsapp:+86-15067706272
WS18 Electrical Fuse are used to protect circuits and equipment. When the current exceeds the rated value, the fuse will quickly heat up and melt, thus cutting off the circuit. Its simple and reliable protection mechanism ensures the stable operation of electrical equipment and the safety of personnel.
This provides a safety margin against a possible overheating of the fuse, and when it exceeds the rated power acceptance of the fuse holder. They for industrial cylindrical fuse links, for mounting on din rail. They Comply with IEC/ EN 60269.
| Part No | Description | Fuse Size | Max Rated Current | U(v) | Number of Poles | Max Power Dissipation |

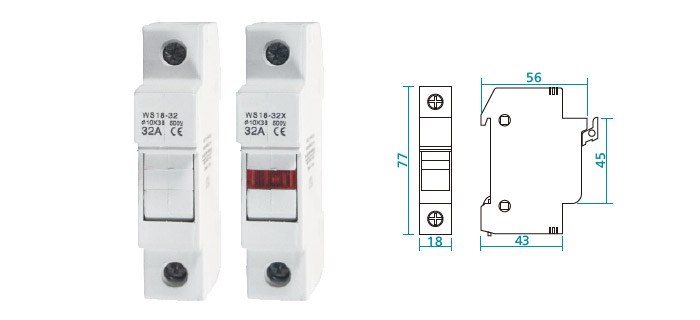

| WS18-32 | Single Pole/32A Rail Mount Fuse Holder Without Fuse | 10x38mm | 32A | 690V AC | 1P-4P | 4W |

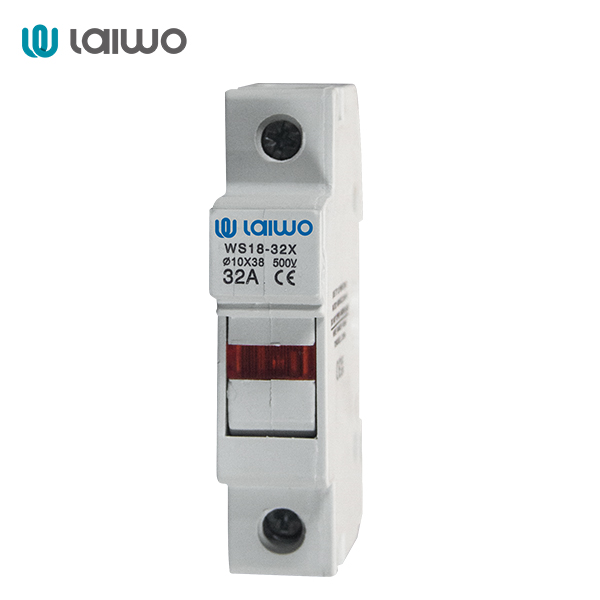

| WS18-32X | Single Pole/32A Rail Mount Fuse Holder Without Fuse | 10x38mm | 32A | 690V AC | 1P-4P | 4W |
| Part No | Description | Fuse Size | Max Rated Current | U(v) | Rated Power Dissipation | Max Power Dissipation |
| WS18-32N | Single Pole/32A Rail Mount Fuse Holder Without Fuse | 10x38mm | 32A | 690V AC | 3W | 4W |
| WS18-32NX | Single Pole/32A Rail Mount Fuse Holder Without Fuse | 10x38mm | 32A | 690V AC | 3W | 4W |
| Part No | Description | Fuse Size | Max Rated Current | U(v) | Number of Poles | Max Power Dissipation |

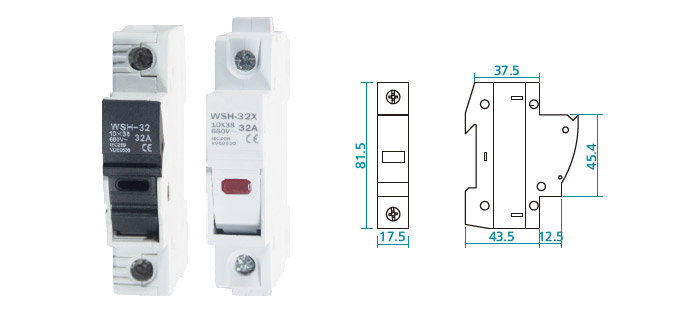

| WSH-32 | Single Pole/32A Rail Mount Fuse Holder Without Fuse | 10x38mm | 32A | 660V AC | 1P-4P | 4W |
| WSH-32X | Single Pole/32A Rail Mount Fuse Holder Without Fuse | 10x38mm | 32A | 660V AC | 1P-4P | 4W |
| Part No | Description | Fuse Size | Max Rated Current | U(v) | Number of Poles | Max Power Dissipation |

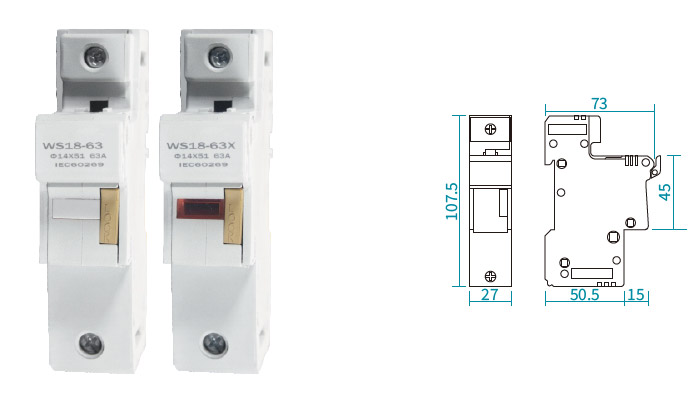

| WS18-63 | Single Pole/63A Rail Mount Fuse Holder Without Fuse | 10x38mm | 63A | 690V AC | 1P-4P | 4W |
| WS18-63X | Single Pole/63A Rail Mount Fuse Holder Without Fuse | 10x38mm | 63A | 690V AC | 1P-4P | 4W |
| Part No | Description | Fuse Size | Max Rated Current | U(v) | Number of Poles | Max Power Dissipation |

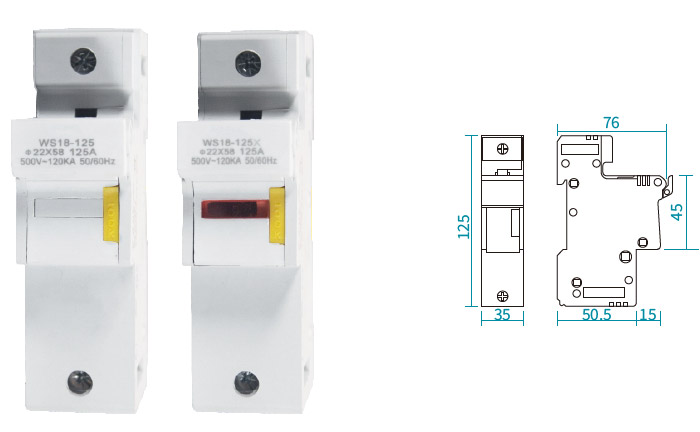

| WS18-125 | Single Pole/125A Rail Mount Fuse Holder Without Fuse | 22x58mm | 125A | 690V AC | 1P-4P | 12W |
| WS18-125X | Single Pole/125A Rail Mount Fuse Holder Without Fuse | 22x58mm | 125A | 690V AC | 1P-4P | 12W |
The WS18 Electrical Fuse is designed to provide reliable overcurrent protection in a variety of electrical applications. This fuse effectively interrupts the circuit in the event of an overload or short circuit, helping to prevent damage to connected equipment and reducing the risk of electrical fires. Its compact design allows for easy installation in standard fuse holders, making it suitable for residential, commercial, and industrial use. The WS18 fuse features a clear visual indicator that shows whether it is functioning properly or has blown, facilitating quick maintenance and replacement. Compliant with national electrical safety standards, it ensures dependable performance and enhances overall system safety. With its durable construction and efficient response time, the WS18 Electrical Fuse is an essential component for protecting electrical systems and ensuring safe operation.
