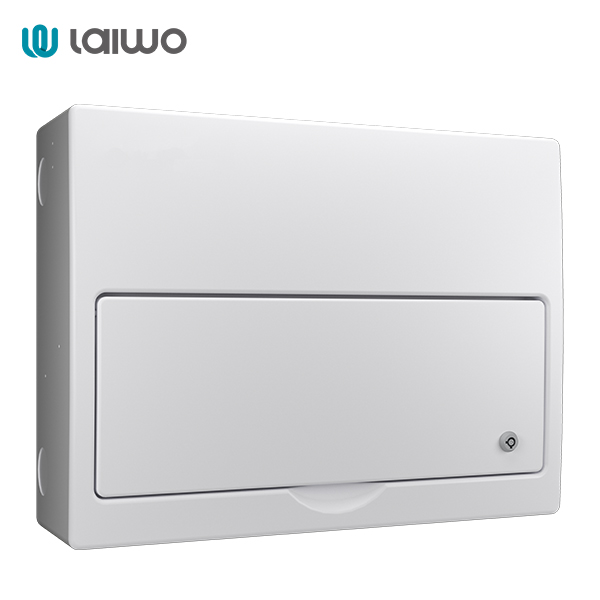

Concealed distribution box are typically mounted within a wall or ceiling to minimize the space occupied in the room and maintain an aesthetically pleasing appearance. It features a flame retardant outer shell and a fully configurable interior structure to protect circuits and equipment from the external environment.

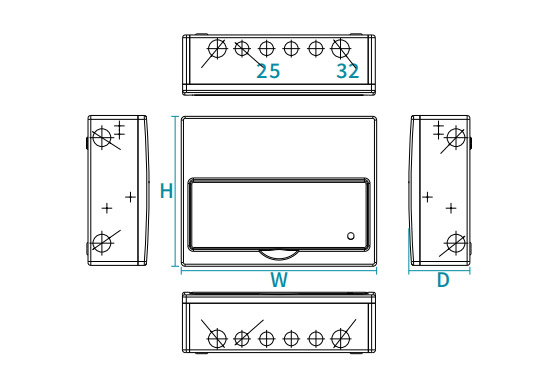

Technical Parameters

Part No	Description	Box Qty	W	H	D
WSMC04 SR/100	4Way Split Load c/w 100A Main Switch/ and 20/40kA DP Surge Protective Device+IRSAs (1x20A)	6	136	270	110
WSMC06 SR/100	6Way Split Load c/w 100A Main Switch/and 20/40kA DP Surge Protective Device+3RSAs (1x6A,1X20A,1x32A)	6	172	270	110
WSMC08 SR/100	8Way Split Load c/w 100A Main Switch/ and 20/40kA DP Surge Protective Device+5RSAs (1x6A,1x16A, 1X20A,1X32A,1x40A)	6	208	270	110
WSMC10 SR/100	10Way Split Load c/w 100A Main Switch/ and 20/40kA DP Surge Protective Device+7RSAs (2x6A,1x16A,1X20A, 2x32A,1x40A)	4	244	270	110
WSMC12 SR/100	12Way Split Load c/w 100A Main Switch/ and 20/40kA DP Surge Protective Device+9RSAs (3x6A,1x16A,1X20A,3x32A,1x40A)	4	280	270	110
WSMC14 SR/100	14Way Split Load c/w 100A Main Switch/ and 20/40kA DP Surge Protective Device+11RSAs (3x6A,2x16A,1X20A,4x32A,1x40A)	4	316	270	110
WSMC16 SR/100	16Way Split Load c/w 100A Main Switch/ and 20/40kA DP Surge Protective Device+13RSAs (4x6A,1x10A,2x16A,1x20A,4x32A,1x40A)	4	352	270	110
WSMC18 SR/100	18Way Split Load c/w 100A Main Switch/ and 20/40kA DP Surge Protective Device+15RSAs (4x6A,2x10A, 3x16A,1x20A,4x32A,1x40A)	4	388	270	110
WSMC22 SR/100	22Way Split Load c/w 100A Main Switch/ and 20/40kA DP Surge Protective Device+19RSAs (5x6A,2x10A,3x16A, 3x20A,5x32A,1x40A)	4	460	270

Product Features

Consumer unit enclosures supplied with neutral cable, busbar, neutral & earth terminals, DIN rail.

Fitted with DP 100A main Switch.

Fitted with type A RCBOs.

Fitted with 20/40kA DP Surge Protective Device.
