electric power distribution box has a high protection level and can resist the impact of harsh environments on the circuit. The distribution box is equipped with advanced internal protection devices such as overload protection and short circuit protection to ensure the safety and stability of power distribution.

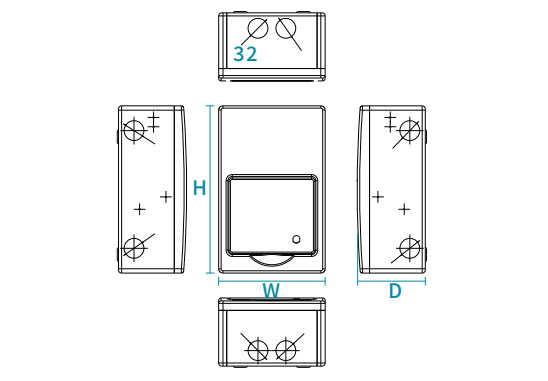

| Part No | Description | Box Qty | W | H | D |
| WSMCO4-RC63 | 4 Way Metal Clad Consumer Unit c/w 63A 30mA RCD(2 usable ways) | 6 | 136 | 270 | 110 |
| WSMCO4-RC80 | 4 Way Metal Clad Consumer Unit c/w 80A 30mA RCD(2 usable ways) | 6 | 136 | 270 | 110 |
| WSMCO6-RC63 | 6 Way Metal Clad Consumer Unit c/w 63A 30mA RCD (4 usable ways) | 6 | 172 | 270 | 110 |
| WSMCO6-RC80 | 6 Way Metal Clad Consumer Unit c/w 80A 30mA RCD (4 usable ways) | 6 | 172 | 270 | 110 |
| WSMCO8-RC63 | 8 Way Metal Clad Consumer Unit c/w 63A 30mA RCD (6 usable ways) | 6 | 208 | 270 | 110 |
| WSMCO8-RC80 | 8 Way Metal Clad Consumer Unit c/w 80A 30mA RCD (6 usable ways) | 6 | 208 | 270 | 110 |
| WSMC10-RC63 | 10 Way Metal Clad Consumer Unit c/w 63A 30mA RCD (8 usable ways) | 4 | 244 | 270 | 110 |
| WSMC10-RC80 | 10 Way Metal Clad Consumer Unit c/w 80A 30mA RCD (8 usable ways) | 4 | 244 | 270 | 110 |
| WSMC12-RC63 | 12 Way Metal Clad Consumer Unit c/w 63A 30mA RCD (10 usable ways) | 4 | 280 | 270 | 110 |
| WSMC12-RC80 | 12 Way Metal Clad Consumer Unit c/w 80A 30mA RCD (10 usable ways) | 4 | 280 | 270 | 110 |
Consumer unit enclosures supplied with neutral cable, busbar, neutral & earth terminals, DIN rail.
Fitted with type A DP RCD.
