The optical fiber distribution box adopts an embedded design. Its compact design saves space and is easy to maintain and repair. The shell design has a high protection level to ensure stable operation in various environments.

Product Video

Technical Parameters

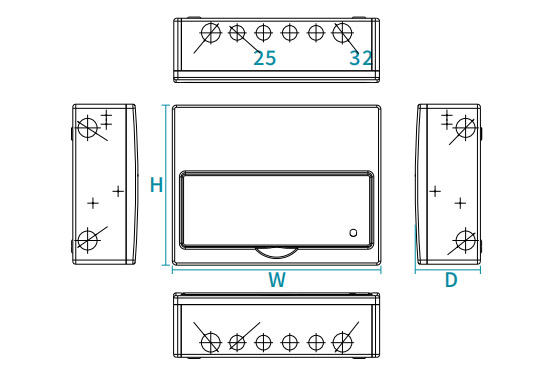

Part No	Description	Box Qty	W	H	D
WSMCO4/100	4 Way Metal Clad Consumer Unit c/w 100A Main Switch (2 usable ways)	6	136	270	110
WSMC06/100	6 Way Metal Clad Consumer Unit c/w 100A Main Switch (4 usable ways)	6	172	270	110
WSMCO8/100	8 Way Metal Clad Consumer Unit c/w 100A Main Switch (6 usable ways)	6	208	270	110
WSMC10/100	10 Way Metal Clad Consumer Unit c/w 100A Main Switch (8 usable ways)	4	244	270	110
WSMC12/100	12 Way Metal Clad Consumer Unit c/w 100A Main Switch (10 usable ways)	4	280	270	110
WSMC14/100	14 Way Metal Clad Consumer Unit c/w 100A Main Switch (12 usable ways)	4	316	270	110
WSMC16/100	16 Way Metal Clad Consumer Unit c/w 100A Main Switch (14 usable ways)	4	352	270	110
WSMC18/100	18 Way Metal Clad Consumer Unit c/w 100A Main Switch (16 usable ways)	4	388	270	110
WSMC22/100	22 Way Metal Clad Consumer Unit c/w 100A Main Switch (20 usable ways)	4	460	270	110

Product Features

Consumer unit enclosures supplied with neutral cable, busbar, neutral & earth terminals, DIN rail.

Fitted with DP 100A main Switch.
