The electrical distribution box for home is designed for spaces that require efficient power distribution. It has a compact structure, various wiring methods, quick and easy installation and maintenance, and supports up to 12-way power distribution.

Product Video

Technical Parameters

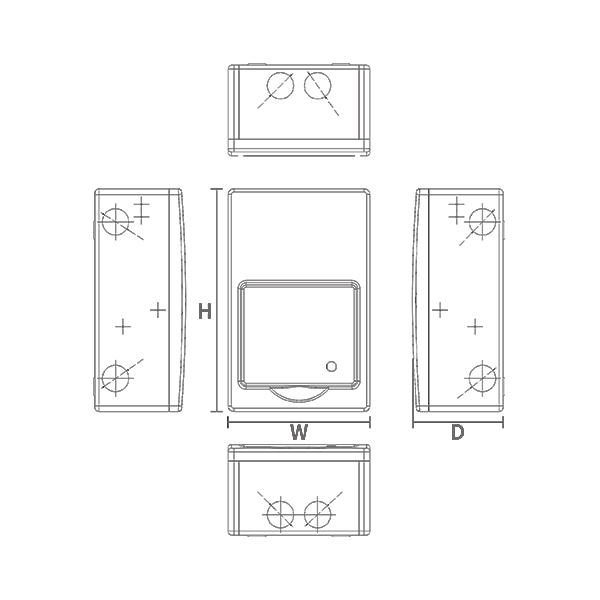

Part No	Description	Box Qty	W	H	D
WSMC4M-SP	4 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA Surge Protective Device (l usable way)	6	136	270	110
WSMC6M-SP	6 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA Surge Protective Device (3 usable way)	6	172	270	110
WSMC8M-SP	8 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA Surge Protective Device (5 usable way)	6	208	270	110
WSMC10M-SP	10 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA Surge Protective Device (7 usable way)	4	244	270	110
WSMC12M-SP	12 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA Surge Protective Device (9 usable way)	4	280	270	110
WSMC14M-SP	14 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA Surge Protective Device (11 usable way)	4	316	270	110
WSMC16M-SP	16 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA Surge Protective Device (13 usable way)	4	352	270	110
WSMC18M-SP	18 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA Surge Protective Device (15 usable way)	4	388	270	110
WSMC22M-SP	22 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA Surge Protective Device (19 usable way)	4	460	270	110

Product Features

Consumer unit enclosures supplied with blank, Neutral Cable, Busbar, Neutrual & Earth Terminal bar, Din Rail.

Fully enclosed metal construction body with drop down metal lid.

Multiple circular cable entry knock-outs (25&32 mm) on the top and bottom, 32mm on the sides, and back plus larger rear slots.

Raised key holes for secure easy installation.

Raised Din rail improves cable routing.

Large and accessible wiring space, with extra space for RCBOs, MCBs.

Flexible connection allows for various configurations of protected ways.
