How to Hook Up a Light Switch

Installing a light switch might seem intimidating, but with the right knowledge and tools, it can be a straightforward DIY project. This guide will walk you through the process step - by - step.

1. Preparation

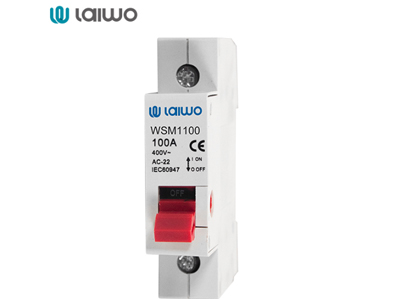

Before starting any electrical work, safety should be your top priority. Locate the main electrical panel in your home. Here, you'll find a disconnect switch. A disconnect switch is a crucial safety device. It's designed to completely isolate the electrical circuit from the power source. In the context of installing a light switch, using the disconnect switch at the main panel ensures that there's no power flowing to the circuit you'll be working on. This prevents the risk of electric shock.
Turn off the power to the circuit where you'll install the light switch by flipping the appropriate breaker in the electrical panel. Use a voltage tester to double - check that the power is indeed off. This simple step can save your life.
Gather the necessary tools, including a screwdriver, wire strippers, electrical tape, and of course, a new light switch. Make sure the new switch is compatible with the voltage and amperage of your electrical system.

2. Removing the Old Switch
Carefully remove the cover plate of the existing light switch using a screwdriver. Once the cover plate is off, you'll see the switch itself attached to the electrical box. Unscrew the two screws that hold the switch in place. Gently pull the switch out of the box, being careful not to damage the wires.
Take note of how the wires are connected to the old switch. Usually, there are two hot wires (black or red) and sometimes a ground wire (green or bare copper).

3. Connecting the New Switch
Strip about ½ inch of insulation from the ends of the wires using wire strippers. On the new light switch, there are typically two screw terminals. Connect one of the hot wires to one screw terminal and the other hot wire to the second screw terminal. The order doesn't usually matter. If there's a ground wire, attach it to the green - colored grounding screw on the switch.
Make sure the wire connections are tight. Loose connections can cause arcing, which is a fire hazard. Secure any excess wire neatly inside the electrical box.

4. Installing the New Switch and Cover Plate
Push the new light switch back into the electrical box. Make sure it's sitting flush. Screw the switch into place using the screws you removed earlier. Replace the cover plate, securing it with the screws.

5. Restoring Power and Testing
Return to the main electrical panel and flip the breaker back on to restore power to the circuit. Test the new light switch to ensure it's working properly. Turn the switch on and off to see if the light functions as expected.
In conclusion, hooking up a light switch involves careful preparation, proper wire connections, and thorough testing. Remember, the disconnect switch at the main electrical panel is your key to a safe electrical project. If at any point you're unsure or uncomfortable with the process, it's always best to consult a professional electrician.
