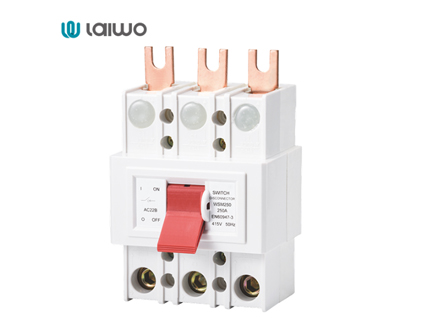

Selecting the appropriate disconnect switch for a specific electrical load is a critical decision that directly impacts the safety and efficiency of an electrical system. A disconnect switch serves as a means to isolate electrical equipment from the power source, facilitating maintenance, repairs, and emergency shutdowns. Here are the key factors to consider when making this choice.
1. Determine the Electrical Load Characteristics
Voltage Rating
The first step is to identify the voltage of the electrical system in which the disconnect switch will be installed. The switch must have a voltage rating equal to or higher than the system voltage. For example, in a typical residential electrical system with a voltage of 120/240V, a disconnect switch rated for at least this voltage should be selected. In industrial settings, where higher voltages such as 480V or 600V are common, the switch's voltage rating must be compatible with these levels to ensure safe operation.
Current Rating
The current rating of the disconnect switch is equally important. It should be able to handle the normal operating current of the electrical load without overheating. Calculate the total current draw of all the connected devices or equipment. This can be done by referring to the nameplates on the individual devices, which usually indicate their power consumption in watts or amps. Divide the total power (in watts) by the voltage to obtain the current (in amps). Select a disconnect switch with a current rating that exceeds the calculated load current to provide a safety margin. For instance, if the total load current is 20 amps, a switch with a current rating of 30 amps might be a suitable choice.
Load Type
Different types of electrical loads have varying characteristics that can affect the choice of disconnect switch. Resistive loads, such as incandescent lights and electric heaters, have a relatively stable current draw. In contrast, inductive loads, like motors and transformers, can cause high inrush currents when starting. These inrush currents can be several times higher than the normal operating current. When dealing with inductive loads, it is essential to select a disconnect switch that can handle the high starting currents without tripping or sustaining damage. Some switches are specifically designed for inductive loads and have features to mitigate the effects of inrush currents.
2. Consider the Application Environment
Indoor or Outdoor Use
The location where the disconnect switch will be installed plays a significant role in the selection process. Indoor switches are typically designed for a relatively clean and dry environment. They may have a simpler enclosure design and fewer protective features. Outdoor disconnect switches, on the other hand, must be able to withstand harsh weather conditions, including rain, snow, sunlight, and temperature variations. They are usually housed in weather - resistant enclosures made of materials such as stainless steel or fiberglass to prevent corrosion and moisture ingress.
Hazardous Locations
In industrial settings, there may be areas where flammable gases, vapors, or dust are present. In such hazardous locations, special disconnect switches are required to prevent the ignition of these substances. These switches are designed and certified to meet specific safety standards for hazardous environments. For example, they may have explosion - proof enclosures and sealed contacts to prevent the release of sparks or arcs that could ignite the surrounding atmosphere.
3. Evaluate the Switching Frequency and Duty Cycle
Switching Frequency
The frequency at which the disconnect switch will be operated is another important consideration. Some applications may require frequent switching, such as in automated processes or equipment that is frequently turned on and off. In these cases, a switch with a high switching endurance rating should be selected. The switching endurance rating indicates the number of times the switch can be opened and closed without experiencing significant wear or failure. A switch with a low switching endurance rating may not be suitable for high - frequency applications and could lead to premature failure.
Duty Cycle
The duty cycle refers to the ratio of the time the switch is in the on position to the total time of a cycle. Continuous - duty applications, where the switch is on for long periods, require a switch that can dissipate heat effectively to prevent overheating. Intermittent - duty applications, on the other hand, may allow for a less robust switch. It is important to match the switch's duty - cycle rating to the actual operating conditions of the electrical load.
4. Look for Additional Features and Safety Certifications
Additional Features
Some disconnect switches come with additional features that can enhance their functionality and safety. For example, some switches may have visible blade indicators that clearly show whether the switch is in the on or off position. This can be particularly useful for maintenance personnel to quickly determine the status of the electrical circuit. Other switches may have lockout - tagout capabilities, which allow them to be locked in the off position to prevent unauthorized operation during maintenance or repairs.
Safety Certifications
Ensure that the disconnect switch has the appropriate safety certifications. These certifications indicate that the switch has been tested and meets the relevant industry standards for safety and performance. Common certifications include UL (Underwriters Laboratories) in the United States and CE (Conformité Européene) in Europe. A switch with recognized safety certifications provides assurance of its quality and reliability.
In conclusion, choosing the right disconnect switch according to the specific electrical load requires a comprehensive understanding of the load characteristics, application environment, switching frequency, and duty cycle. By carefully considering these factors and looking for additional features and safety certifications, you can select a disconnect switch that ensures the safe and efficient operation of your electrical system.
